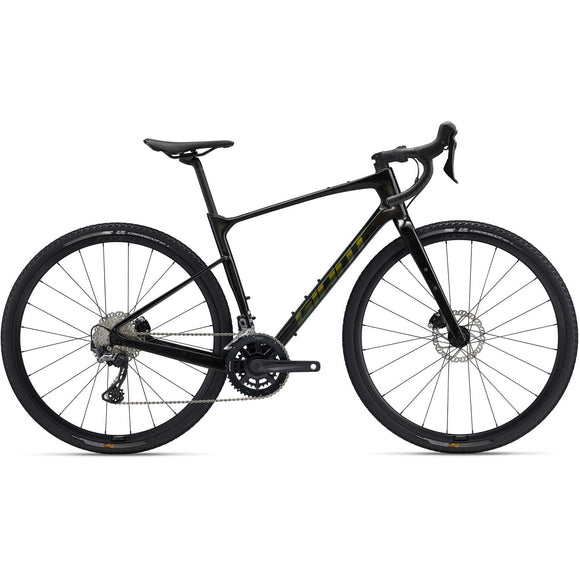

Giant Revolt Advanced 2
Fast, light, and adventure-ready. The Revolt Advanced 2 uses an Advanced-grade composite frame and composite fork for smooth control on rough gravel. A rear flip-chip lets you choose a shorter wheelbase for agility or a longer wheelbase for stability and tire clearance up to 53 mm. D-Fuse cockpit/seatpost add tuned compliance, with clean internal routing and abundant mounts for gear.
Key Features
- Advanced-grade composite frame with internal routing; composite fork with OverDrive steerer.
- Flip-chip dropout: adjust wheelbase & tire clearance (up to 53 mm in long).
- D-Fuse handlebar & seatpost for vibration damping and long-ride comfort.
- Mounts for multiple bottles, top-tube bag, racks, and fenders.
- Colors: Starry Night / Chameleon Neptune; Panther / Chameleon Saturn.
Specifications
| Frame | Advanced-Grade Composite, 12×142mm TA, disc, flip-chip dropout |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm TA, flat-mount disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm (width by size) |
| Stem | Giant Contact, 8° (length by size) |
| Seatpost | Giant D-Fuse composite, 14mm offset |
| Saddle | Giant Approach |
| Shifters | Shimano GRX RX-600, 2×11 |
| Front Derailleur | Shimano GRX RX-810 |
| Rear Derailleur | Shimano GRX RX-810 |
| Crankset | FSA Omega AGX, 48/32T (length by size) |
| Cassette | Shimano 105, 11-speed, 11–34 |
| Brakes | Shimano GRX RX-400 hydraulic; rotors 160 mm F / 160 mm R |
| Wheelset | Giant P-X2 Disc wheelset (alloy) |
| Tires (max) | Up to 53 mm (flip-chip in long position) |
Geometry (XS–XL • Short | Long)
| Size | Wheelbase (mm) | Chainstay (mm) | BB Drop (mm) | Stack (mm) | Reach (mm) | Standover (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|
| XS | 1024 | 1034 | 425 | 435 | 80 | 81 | 556 | 381 | 724 | 731 | 78 | 82 |
| S | 1020 | 1030 | 425 | 435 | 80 | 81 | 570 | 381 | 740 | 747 | 72 | 75 |
| M | 1026 | 1036 | 425 | 435 | 80 | 81 | 586 | 387 | 757 | 764 | 68 | 72 |
| M/L | 1031 | 1041 | 425 | 435 | 80 | 81 | 602 | 391 | 774 | 780 | 65 | 68 |
| L | 1041 | 1051 | 425 | 435 | 80 | 81 | 616 | 397 | 791 | 797 | 65 | 68 |
| XL | 1056 | 1066 | 425 | 435 | 80 | 81 | 630 | 407 | 807 | 814 | 65 | 68 |
Tech & Feature Links
Flip-Chip Dropout
Adjust wheelbase & tire clearance up to 53 mm.
D-Fuse Compliance
Handlebar & seatpost system that damps vibration.
OverDrive
Oversized bearings & tapered steerer for precision.
Tubeless System
Lower rolling resistance, more traction, fewer flats.
Specifications subject to change without notice.
