2026 aluminum gravel bike
REVOLT 2
A versatile aluminum gravel bike built for pavement, dirt roads and weekend exploration, with a composite fork, adaptable flip-chip geometry and clearance for tires up to 53 mm.
Key performance factors
Confident wherever the road ends
Confident handling
Endurance-oriented geometry, shorter chainstays and a low bottom bracket create stable, predictable control on pavement and rough terrain.
Tuned compliance
Dropped seatstays, the D-Fuse seatpost and the ergonomic Contact XR handlebar help reduce vibration without compromising pedaling response.
Terrain adaptability
The rear flip chip changes wheelbase and tire clearance: short for quicker handling, or long for added stability and tires up to 53 mm.
Technology
Practical performance for mixed surfaces
ALUXX aluminum
A durable 6061-series aluminum frame uses shaped, single-butted tubing to balance strength, weight and value.
Composite fork
An Advanced-grade composite fork and full-composite steerer reduce front-end vibration and support precise steering.
D-Fuse compliance
The shaped alloy seatpost flexes under load to soften impacts while remaining laterally stable during hard efforts.
Flip-chip dropout
Two rear axle positions let riders tune handling and wheelbase while expanding measured tire clearance from 45 to 53 mm.
Fit
Sizing guide
Sizing is a reference only. Confirm final size with Boulder Nordic & Cycle Sport.
| Size | Height | Height |
|---|---|---|
| XS | 155–166 cm | 5'1"–5'5" |
| S | 159–171 cm | 5'3"–5'7" |
| M | 169–181 cm | 5'7"–5'11" |
| M/L | 174–186 cm | 5'9"–6'1" |
| L | 179–191 cm | 5'10"–6'3" |
| XL | 189–200 cm | 6'2"–6'7" |
Frame dimensions
Geometry
Measurements are in millimeters. Paired values show short | long flip-chip positions.
| Measurement | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Seat tube length | 430 | 450 | 470 | 490 | 510 | 530 |
| Seat tube angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| Top tube length | 540 | 550 | 560 | 575 | 585 | 600 |
| Head tube length | 125 | 135 | 150 | 165 | 180 | 195 |
| Head tube angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| Fork rake | 50 | 50 | 50 | 50 | 50 | 50 |
| Trail | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| Wheelbase | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
| Chainstay | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| BB drop | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| Stack | 556 | 570 | 586 | 602 | 616 | 630 |
| Reach | 381 | 381 | 387 | 391 | 397 | 407 |
| Standover | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
| Handlebar width | 420 | 420 | 440 | 440 | 460 | 460 |
| Stem length | 50 | 60 | 70 | 80 | 80 | 90 |
| Crank length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Build details
Specifications
Sizes
XS, S, M, M/L, L, XL
Colors

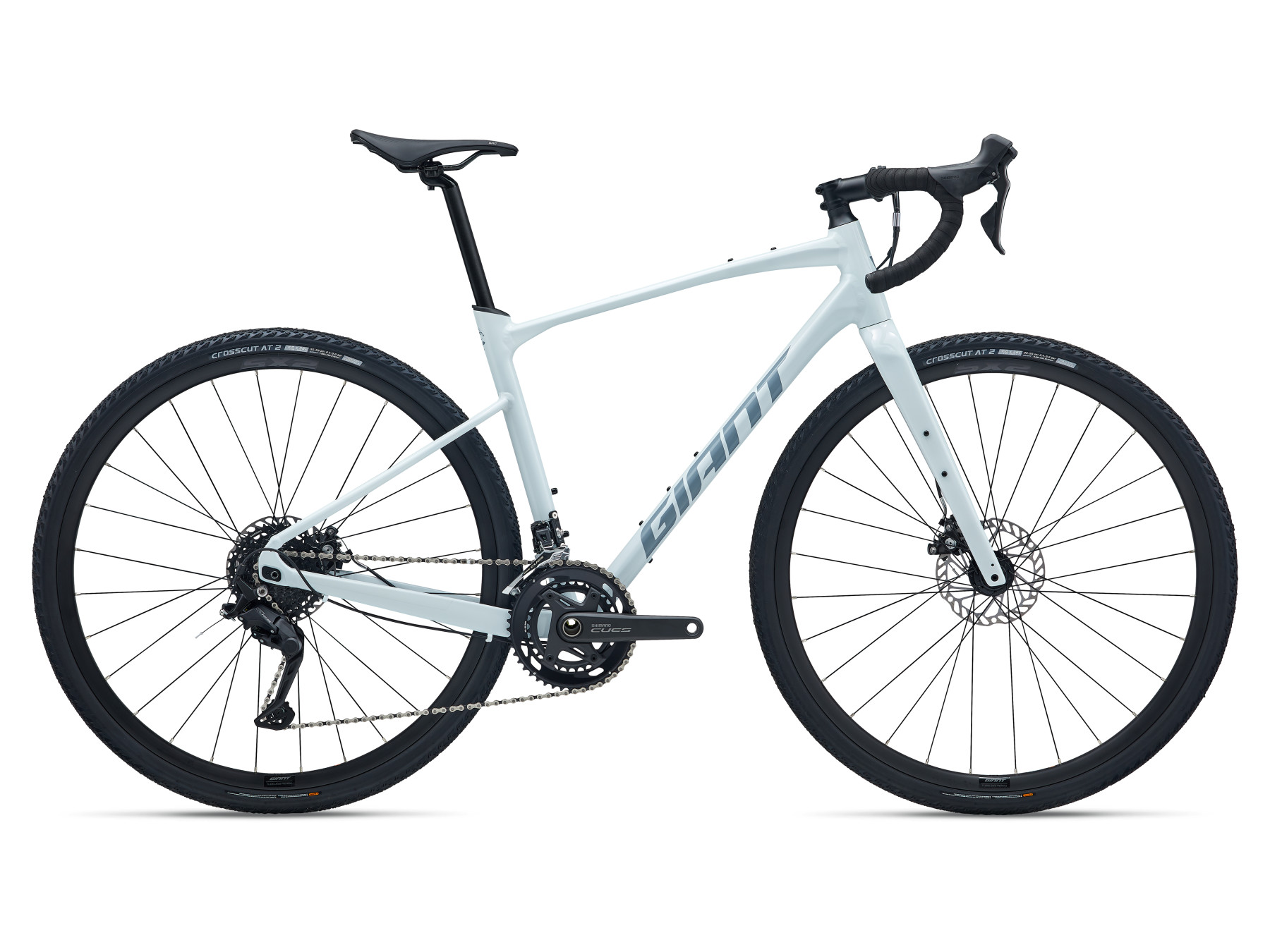

Ocean Storm, Icicle White
Frame
ALUXX-grade aluminum, 12×142 mm thru-axle, disc brake mounts, flip-chip dropout
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12 mm thru-axle, disc brake mounts
Handlebar
Giant Contact XR Ergo-Control, 31.8 mm; XS/S 42 cm, M/M-L 44 cm, L/XL 46 cm
Bar tape
Cork tape with gel
Stem
Giant Contact, 8-degree; XS 50, S 60, M 70, M/L 80, L 80, XL 90 mm
Seatpost
Giant D-Fuse alloy, 14 mm offset
Saddle
Giant Grit
Shifters
Shimano CUES U3030 2×9 or Shimano Sora 2×9
Front derailleur
Shimano CUES U6030 or Shimano Sora
Rear derailleur
Shimano CUES U4020 or Shimano Sora long cage
Brakes
Shimano BR-RS305 mechanical disc; Giant MPH 160 mm rotors front and rear
Brake levers
Shimano CUES U3030 or Shimano Sora
Cassette
Shimano CS-LG300, 11–36
Chain
KMC X11
Crankset
Shimano FC-U6030-2, 32/46; XS/S 170, M/M-L 172.5, L/XL 175 mm
Bottom bracket
Shimano threaded
Rims
Giant S-X2 alloy
Hubs
Giant alloy, 12 mm thru-axle
Spokes
Stainless steel
Tires
Giant CrossCut GRIP 1, 700×45c
Tubeless
Tubeless prepared
Maximum tire clearance
45 mm in short flip-chip position; 53 mm in long position
Specifications and component availability may change without notice. Some production bikes may use equivalent Shimano CUES or Shimano Sora drivetrain components as indicated by Giant.
