Wolf Tooth Components SKU: SPBASH-SHDM-M5 Barcode: 810006802948

Wolf Tooth CAMO BashSpider for Shimano

$79.95

Shipping calculated at checkout

In stock!

NOTE: This is a CAMO BashSpider ONLY. A CAMO Chainring is required to complete this system.

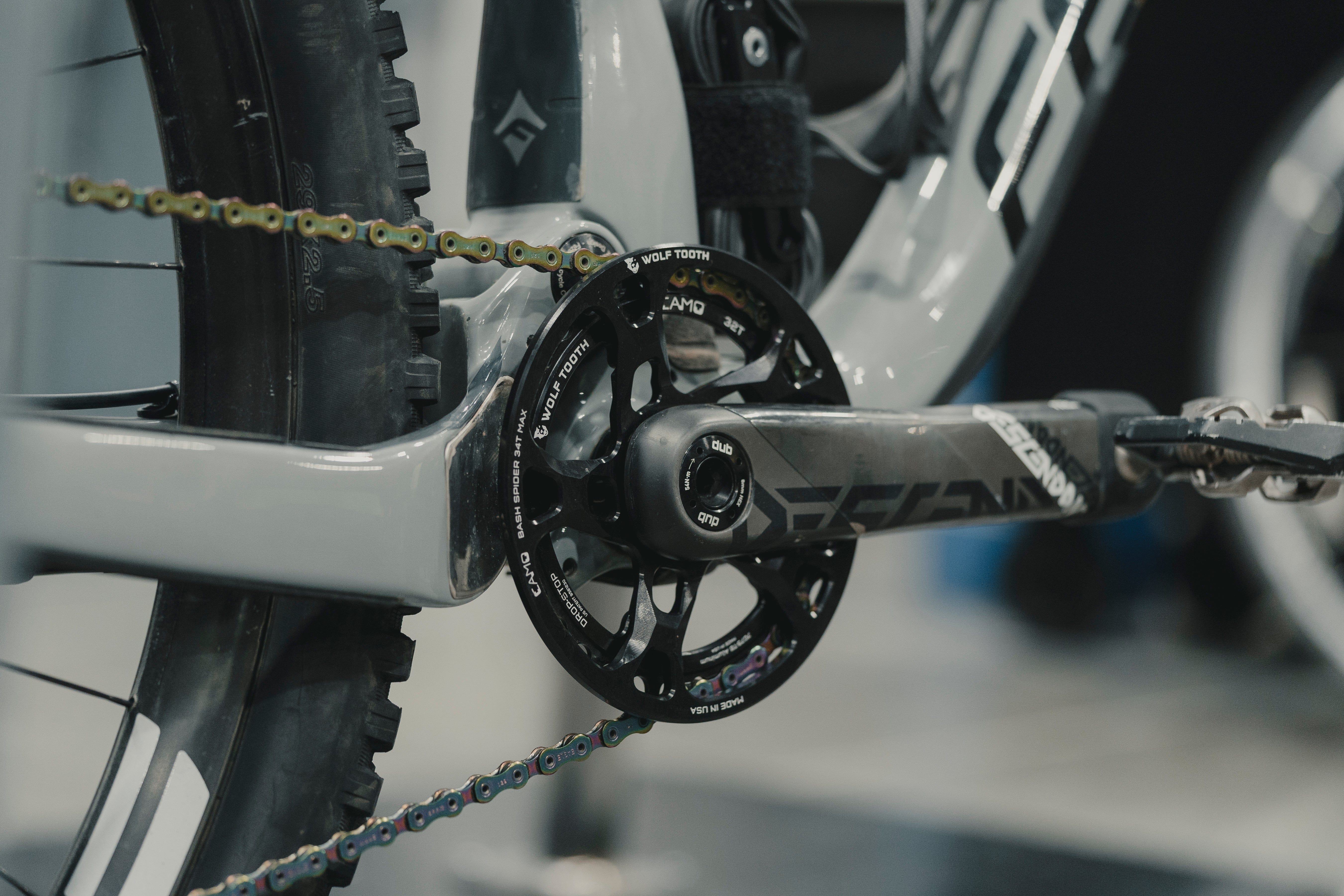

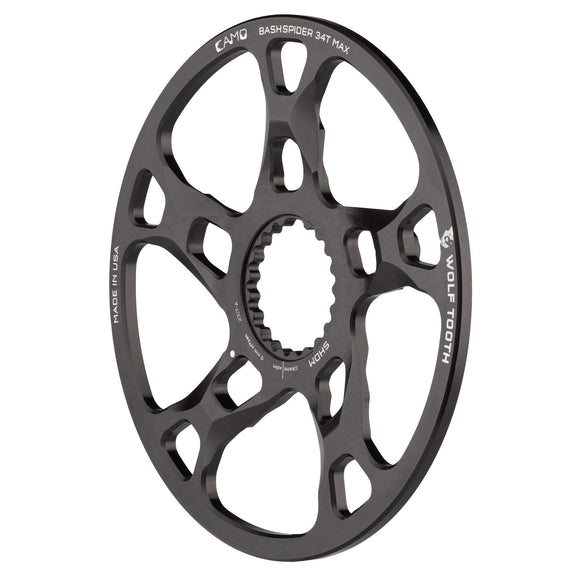

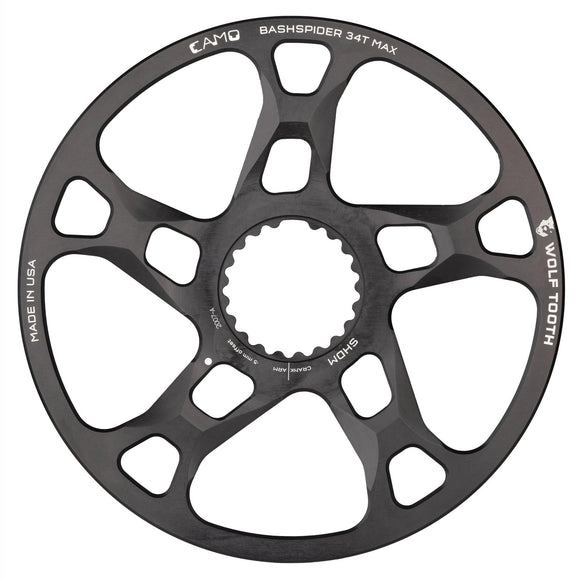

The CAMO BashSpider is the world's only crankset-mounted boost bash ring. This is a spider with an integrated bash ring for use with direct mount Shimano cranksets. The CAMO BashSpider pairs with a

The CAMO chainring system was created by the Wolf Tooth engineers for Chainline And Material Optimization on direct mount style Chainrings.  The key advantages include:

  1. Perfect chainline - for wear and shifting precision

  2. Optimal material usage - for weight, stiffness, and wear

  3. Price - for less expensive replacement chainrings

  4. Swapping - Very fast chainring change out with 5 small bolts and no nuts

  5. Availability - Wolf Tooth is the one-stop-shop for your direct mount needs...round or oval, stainless or aluminum, and no matter the crankset

  6. Wolf Tooth’s patented Drop-Stop®  wide/narrow tooth profile for the ultimate chain retention and mud shedding ability



Compatibility



  • This spider is designed to work with Shimano cranksets that have a removable spider.
  • Not compatible with the XTR 9100-1, XTR 9100-2, or XTR 9130 crankset (narrow q-factor version)
  • Currently available only for Boost chainline. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:
    • M5 (minus 5mm - Boost)
      • dished towards the frame
  • CAMO mounting bolts are included with each spider but can also be purchased separately in a variety of colors
  • Only works with CAMO 28T-34T round or 30T-32T elliptical chainrings

Installation notes:

  • You will be able to access all bolts without removing the spider
  • Line up the little dot on the ring with the dot on the spider. You cannot install the ring in the wrong rotational orientation.
  • Be sure the bosses on the spider "plug in" to the chainring.
  • Torque bolts only to 4-5 Nm and use blue Loctite threadlocker

Tech Specs

Weight: M5 • 103g
Material: 7075-T6 aluminum
Included: ED coated steel bolts included
Made in USA
