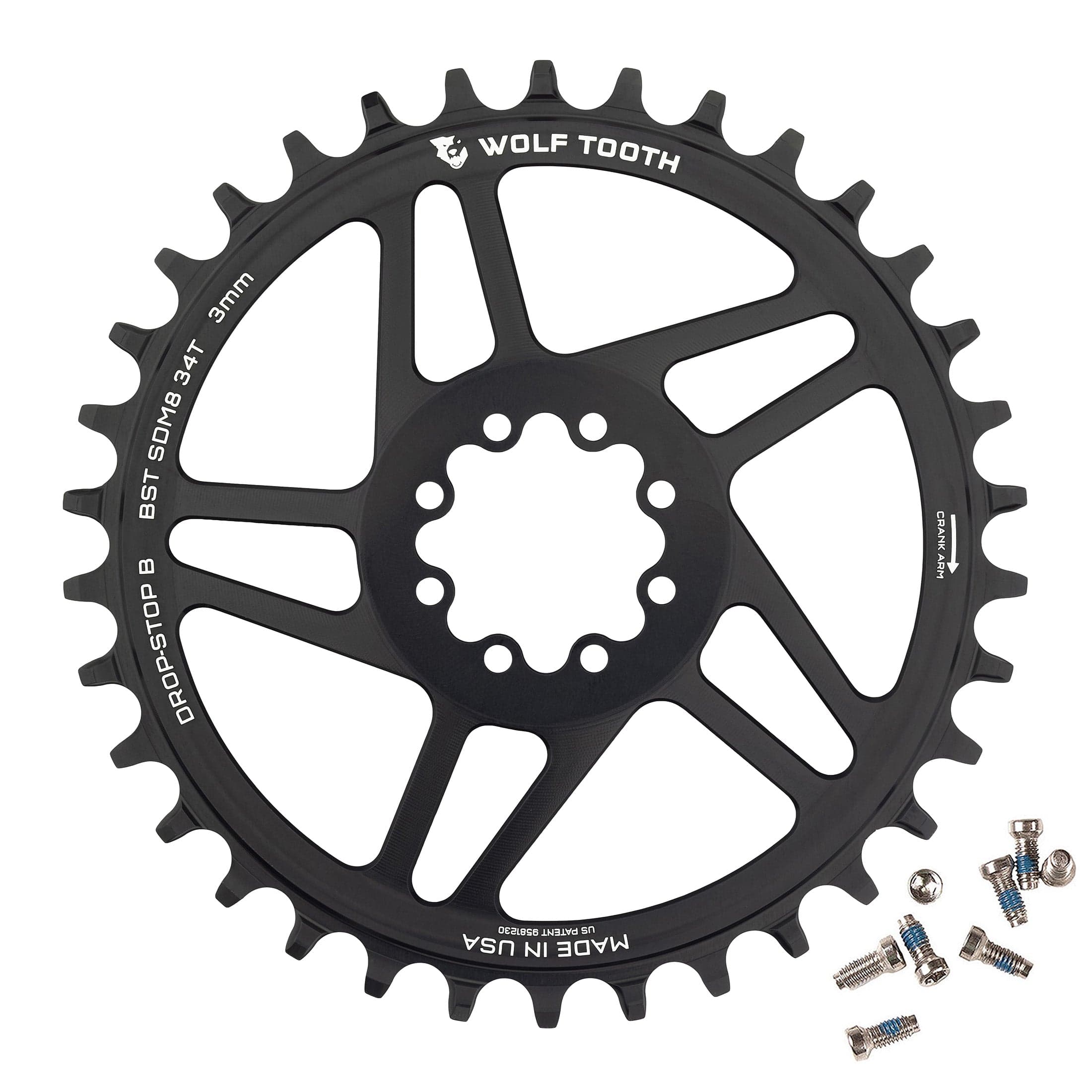

Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks

Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have SRAM T-Type Transmission groupsets that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.

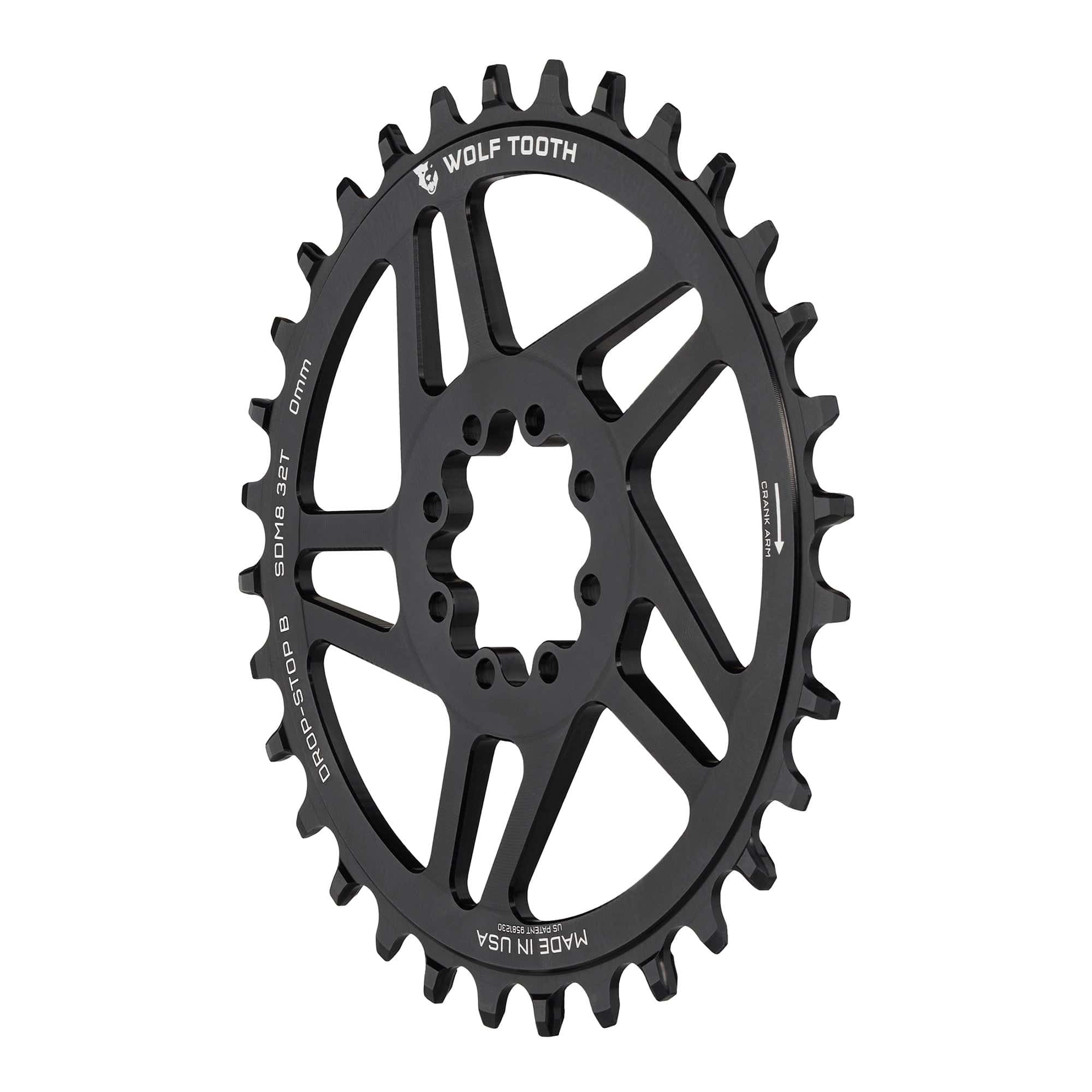

The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets. The 0mm offset is for SRAM XX1 SL cranks with DUB spindles to move the chainline from 52mm to 55mm.

Compatibility

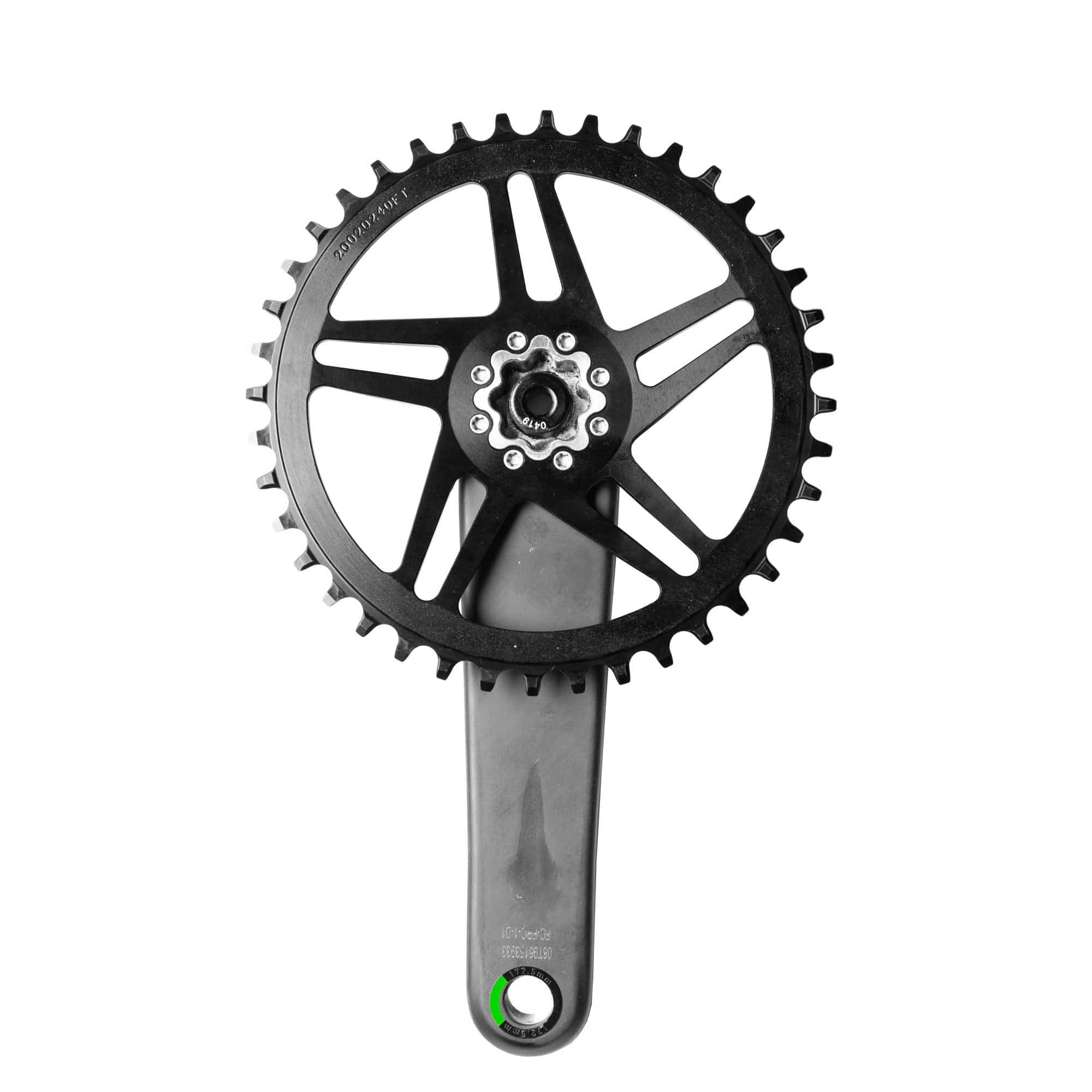

• These direct mount chainrings will replace your existing chainring and spider or replace a direct mount chainring for SRAM T-Type Transmission AXS cranksets, Sram Transmission 70 and 90 cranks, 2025 Cane Creek eeWings Titanium Cranks (8-bolt), and other cranks that use the 8-bolt standard.
• SRAM T-Type Transmission DUB Wide MTB cranksets use the 8-bolt direct mount standard.

• Wolf Tooth’s patented Drop-Stop® B wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
• 3mm, 0mm offsets available
• Chainline 55mm with 3mm offset for DUB Wide MTB, 0mm offset for DUB

• Chainline 52mm with 3mm offset for DUB


Recommendations

• Recommend the use of a clutch-style rear derailleur for the best chain security

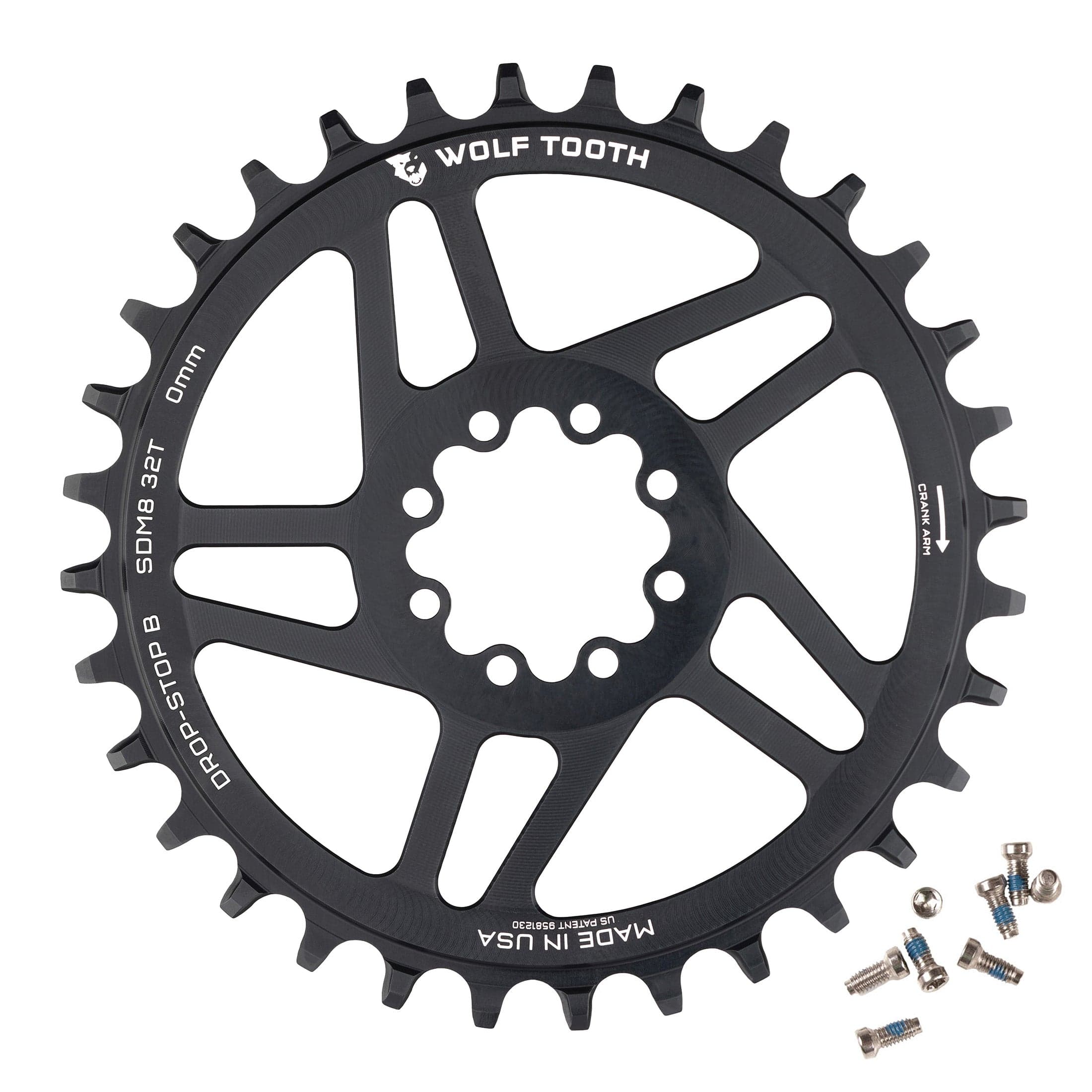

• Use the included custom T20 bolts. Torque 4Nm with T20 tool
