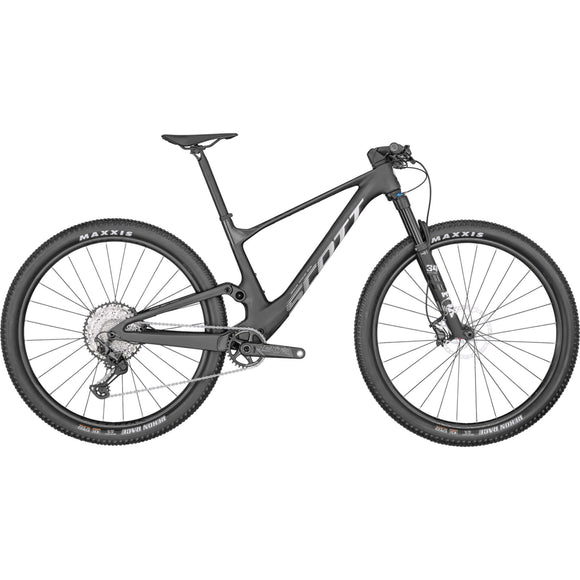

2024 SCOTT Spark RC Team black (TW)

Details

The Spark RC Team is the perfect blend of top-notch carbon engineering, never before seen levels of integration, and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross-country race bike of all cross-country race bikes. If you think fast is fun, then you're going to love this ride.

KEY FEATURES
- Spark RC Carbon HMF Frame
- FOX 34 SC Float Perf. 120mm Fork
- FOX Nude 5 EVOL, 120mm, TwinLoc
- Shimano XT 12 Speed
- Shimano XT Disc Brakes
- Maxxis Rekon Race Foldable Tires

TECHNOLOGIES:

EVO-LAP TECHNOLOGY
But the remaining twenty percent requires most of our efforts. For this reason, our choice of the most advanced carbon fibers in the market is followed by intensive use of specific tools, like FEA (finite element analysis) software, to map out the carbon lay-up.

With FEA software, we can simulate different forces on a virtual model of the frame and adjust the frame construction accordingly. FEA software enables us to create complete virtual prototypes incorporating all the physical phenomena that exist in real-world environments.

With our Evo-Lap technology we model the frame to optimize the surface area, simulate tube structures with different ply orientations, observe the results of using different configurations, and test the stress distribution in different areas of the frame. Thanks to this extensive computer modeling, we've optimized the carbon layers in all the parts of our frame. When the parts were bonded together in the first prototypes, the result was a super light and compact frame without sacrificing the stiffness, comfort or impact resistance. The entire range benefitted from our Evo-Lap technology.

ADJUSTABLE HEAD ANGLE
With the new Spark, you can adjust the head angle by .6 degrees slacker or steeper. This can be done without cutting cables or bleeding brakes. All you must do is disassemble the bar, rotate the headset cups 180 degrees, and reassemble.

EASY SHOCK ACCESS
Accessing the shock via the bottom bracket area is facilitated through a hatch. This makes it easy to adjust rebound, compression, shock pressure, and for installing or replacing the cable for our TwinLoc Suspension System.

PATENTED INTEGRATED SUSPENSION SYSTEM
An integrated shock platform allows us to refine suspension characteristics without sacrificing weight. Often, when working with bikes at this level, the concept of marginal gains becomes an ever important one.

For the optimal performance of a suspension shock, power transfer must be the most direct possible. What we want to avoid are any inefficient directional movements, in other words, lateral movements (sideways to the direction of travel) as the shock goes through its compression.

Having an integrated shock allows us to improve this in several ways. Firstly, the frame construction around the shock and with the trunnion mount can be designed to be much more rigid, reducing movement and fostering more efficient power transfer. We can also add much larger bearings to the seat tube pivot, further reinforcing this area and reducing any unnecessary motion. Our integrated Suspension technology also helps us to engineer frames with a lower shock placement which lowers center of gravity. As a result, the bike benefits from better handling, and a more stable, confidence-inspiring ride for the end user.

While these may seem like minor improvements individually, the sum of their parts results in more efficient shock performance. Additionally, the shock is fully protected from any foreign elements. Rainy race? No problem, your shock will continue to perform at its best regardless.

REAR AXLE TOOL
Our rear axle tool has been a staple on our bikes for years, it is now better than ever. It features a T25, T30, and a 6 allen key all in one. With these three options, you can adjust all pivot hardware and nearly everything else there is to adjust on the bicycle.

SINGLE PIVOT SUSPENSION LAYOUT
A full-suspension bike will never have success without, well, good suspension design. From the first time we rode the Spark's single pivot layout we fell in love. Years later, we still believe that for technical cross-country racing and fast, punchy singletrack it is the best approach. The Spark's suspension layout has a very specific and proven kinematic and less unsprung mass. Using a flex pivot in the seat stay is an ideal solution for bikes in this travel range. This allows us to keep a very lightweight system while still ensuring optimal suspension performance.

Please note that bike specifications are subject to change without prior notice.

Specifications

Frame

• Spark RC Carbon HMF
• Integrated Suspension Technology with Flex Pivot
• Adjustable head angle
• Syncros Cable Integration System
• BB92 / UDH Interface / 12x148mm with 55mm Chainline

Fork

• FOX 34 SC Float Performance Air
• Grip 3-Modes / Kabolt 15x110mm axle / 44mm offset
• Tapered steerer / Rebound Adjustment / Lockout
• 120mm travel

Rear Shock

• FOX NUDE 5 EVOL Trunnion
• SCOTT custom with travel & geo adjustment
• 3 modes: Lockout-Traction Control-Descend
• DPS / Rebound Adjustment
• Travel: 120-80-Lockout / T165x45mm

Wheels

• Syncros Silverton 2.5-30
• 6 Bolt
• Front: 15x110mm, Rear: 12x148mm
• 30mm Tubeless-ready rim / 28H
• Micro Spline Syncros Axle with removable lever (includes 6mm Allen, T30, and T25 tools)

Tires

• Maxxis Rekon Race / 29x2.4"
• 60TPI / Foldable Bead / Tubeless Ready / EXO

Bottom Bracket

• Shimano SM-BB71-41A / Shell 41x92mm

Crankset

• Shimano XT FC-M8120-1 / Hollowtech 2 / 32T

Shifters

• Shimano XT SL-M8100-IR / Rapidfire Plus / I-Spec EV Clamp

Rear Derailleur

• Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed

Cassette/Freewheel

• Shimano SLX CS-M7100-12 / 10-51T

Chain

• Shimano SLX CN-M7100

Brakes

• Shimano XT M8100 Disc

Rotors

• Shimano SM-RT66 / 6 Bolt
• 180mm (Front) and 160mm (Rear)

Handlebars

• Syncros Fraser 2.0 XC Alloy 6061 D.B.
• Flat Bar / 8° Sweep / 740mm
• Syncros Performance XC lock-on grips

Stem

• Syncros XC 2.0
• Syncros Cable Integration System
• -12° rise / 6061 Alloy / 31.8mm / 1 1/8"

Headset

• Syncros - Acros Angle Adjust & Cable Routing HS System
• ±0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

Seatpost

• Syncros Duncan 2.0 / 10mm offset / 31.6x400mm

Saddle

• Syncros Belcarra Regular 2.0 / CRMO Rails

Pedals

• Sold separately

Accessories & Extras

• SCOTT TwinLoc 2 Technology (3 Suspension Modes)
• Transport Axle

Specifications subject to change without notice.
