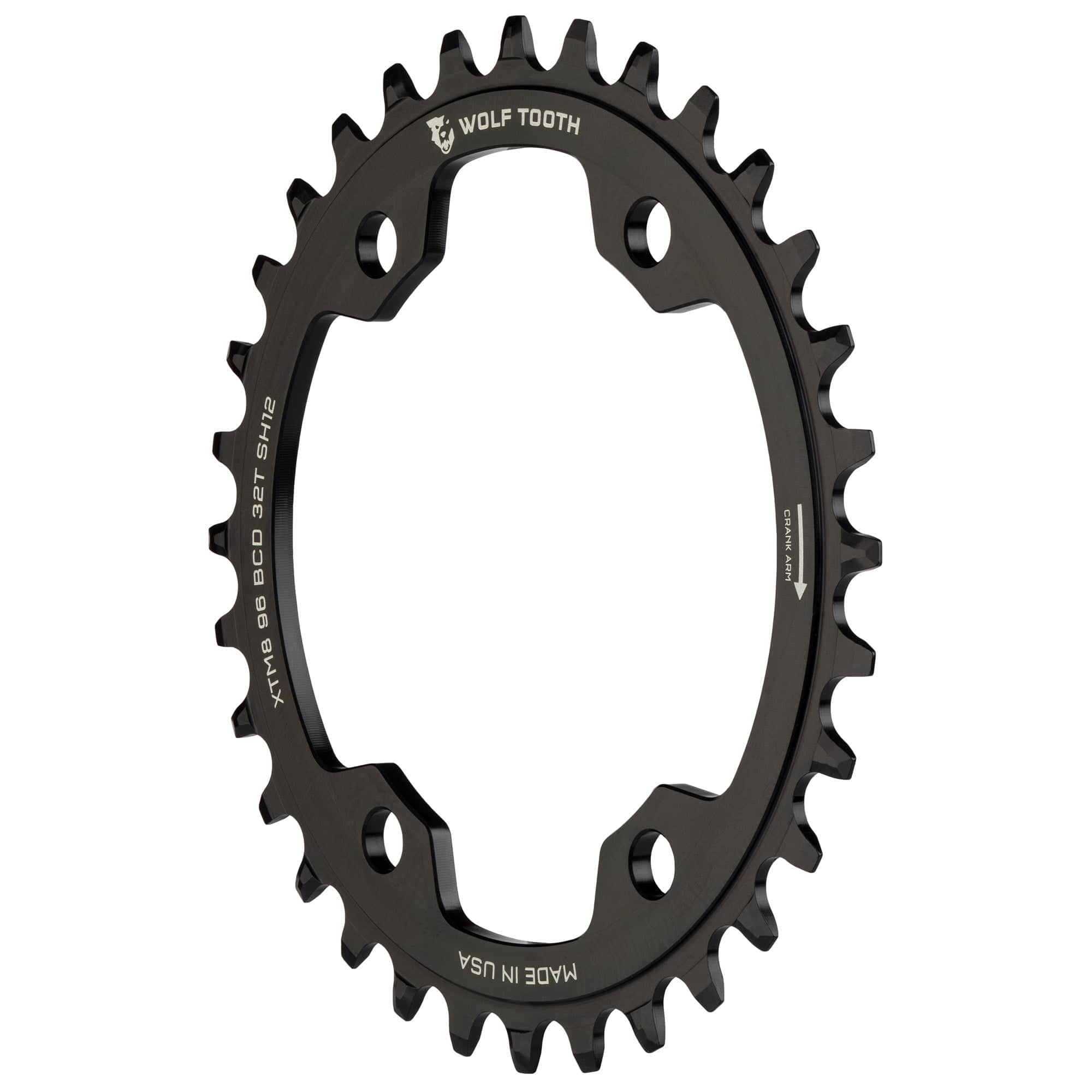

Looking for a 1X chainring for your Shimano XT, SLX or Deore crankset with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in the form of a beautifully machined asymmetrical 96 mm BCD that provides the ideal 1X chainline of 49mm.
NOTE: The 28T and 26T sizes are available mount to the inner 64 BCD mounting position on these cranksets.
Compatibility

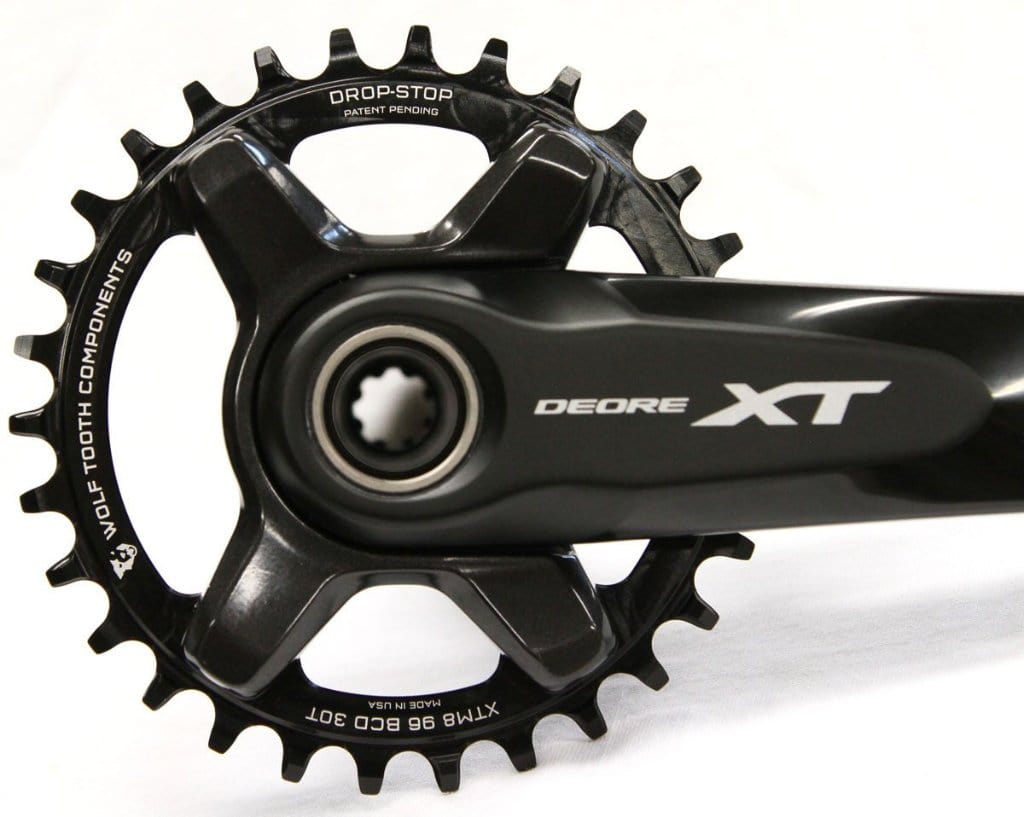

- These rings fit on the Shimano XT M8000, SLX M7000, Deore M6000, or FC M5100 1x or 2x cranksets
- Not compatible with Deore triple (3x) cranksets
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most Boost bikes. See this explanation for details.
- Drop-Stop A models will reduce the chainline (inward towards the frame) from the Shimano specified chainline for the crankset: 26T-28T = -3mm, 30T-34T = -2mm, and 36T-38T = -1mm
- Drop-Stop ST models will have the same chainline as the Shimano specified chainline
- 10mm bolts are optimized for mounting this ring
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
Tech Specs
Weight: 30t • 41g | 32t • 50g | 34t • 59g | 36t • 69g
Material: 7075-T6 aluminum
Made in the USA
