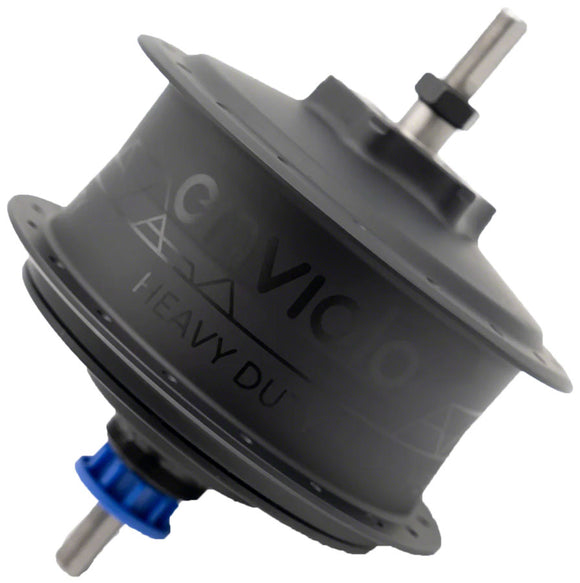

Enviolo CVP Internally Geared Hub - Heavy Duty CY24 40t Spline 36 Hole 135mm Bolt-On Axle 6-Bolt Disc BLK

Enviolo hubs use the NuVinci planetary transmission to provide stepless shifting and near silent operation. Shift at any time- while pedaling coasting or while stopped. Enviolo hubs are designed to withstand the high torque of an eBike while being visually maintenance-free. The Heavy Duty hub is engineered for heavier loads over shorter distances with or without Ebike motors. Rated for up to 250 kg permissible vehicle weight and 100Nm nominal torque.

Die-Cast & machined housing

380% gear ratio range

Accepts up to 80 Nm continuous torque

Can be used with Ebike motors up to 500w

Suitable for up to 280kg gross weight

Rear Axle	10x1 Threaded x 135mm
Cassette Body Type	Single Cog Driver
Color	Black
Spoke Interface	J-Bend
Defined Color	Black
Hub Drilling	36
Hub/Brake Compatibility	6-Bolt Disc
