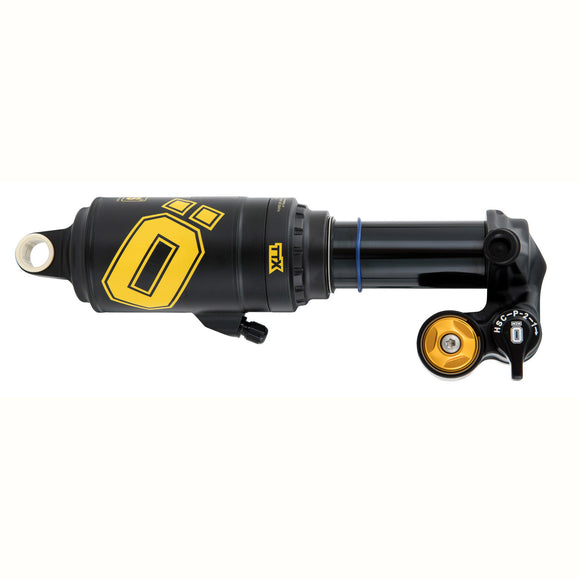

Ohlins TTX2Air Trunnion Shock 40/42.5/45 x 165mm

$799.99

Shipping calculated at checkout

Sold Out
  • TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate
  • Trunnion mount: the linkage bolts directly to the sides of the cylinder head
  • TTX Twin tube design for consistent damping performance on all types of terrain
  • Extra bushing overlap for improved side load management
  • Specific wiper seal and air sleeve lubrication reduce friction
  • External rebound, low-speed and high-speed compression adjustment
  • Climb mode to reduce suspension movements during climbs
  • Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
  • Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)
Model TTX2 Air Trunnion
Stroke 40/42.5/45mm
Eye Eye-165mm
Stroke Length 165Mm
Spring Rates 40/42.5/45
