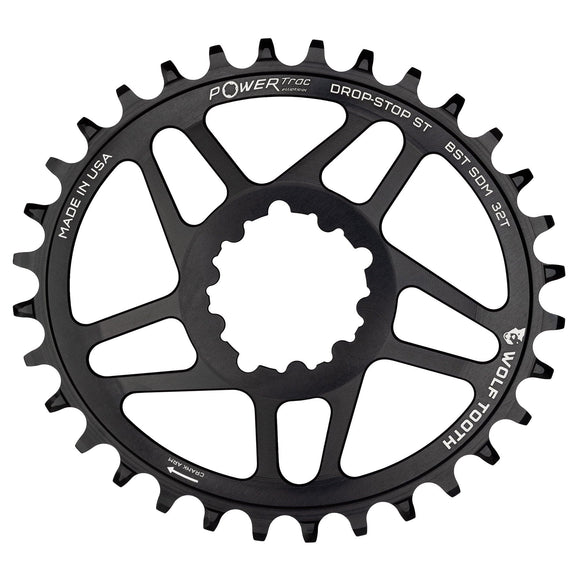

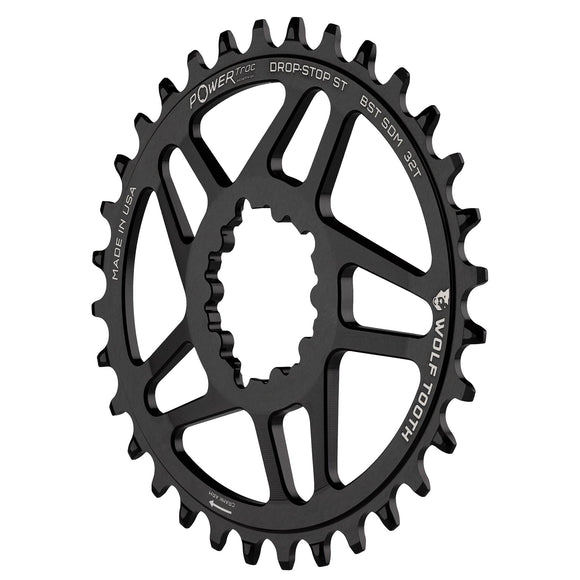

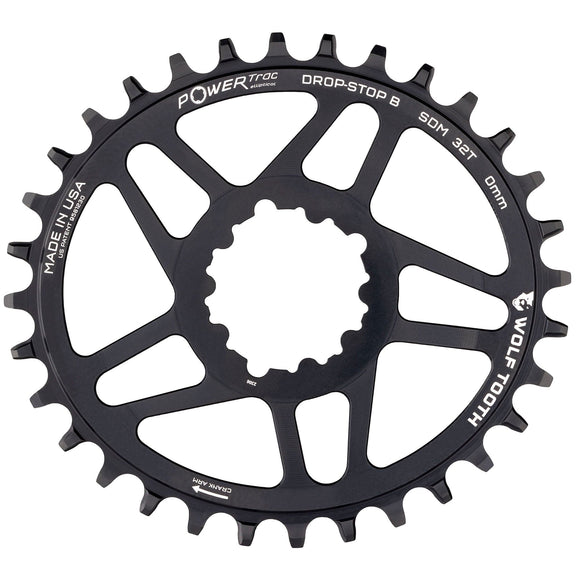

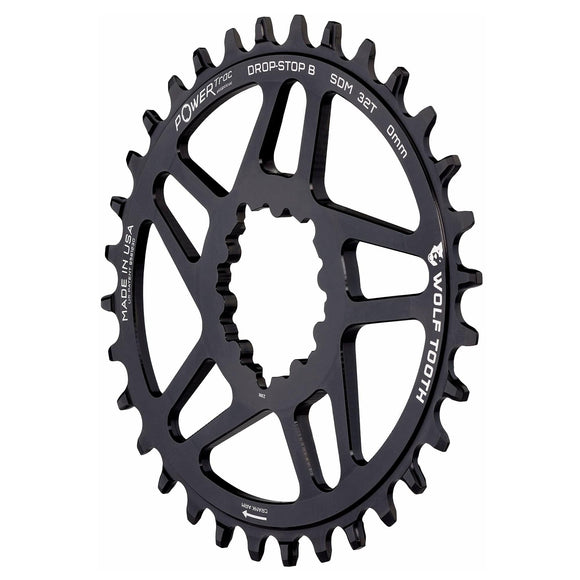

Oval Direct Mount Chainrings for SRAM 3-Bolt Mountain Cranks

The direct mount chainrings for SRAM cranksets replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. They are available in 3 different offsets: 6mm offset for 49mm chainline, 3mm offset for 52mm chainline, and 0mm offset for 55mm chainline and SRAM Transmission optimization. They are available in various tooth profiles to suit your drivetrain, including Drop-Stop B, which is optimized for SRAM T-Type Transmission and compatible with many other chains. Crankset and chainring compatibility questions? Check out our helpful guide here.

Compatibility

• These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle.  You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that these chainrings are NOT compatible with SRAM 8-bolt direct mount cranksets.
• Also compatible with Cane Creek eeWing cranksets.
• There are 3 offsets:
• Boost: 0mm offset for 55mm chainline required for SRAM Transmission
• Boost:  3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
• BB30: 0mm offset for BB30 short spindle cranks for  49mm chainline
• Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline

• Fat Bikes: If you are planning to use this on an X9 or XX1 fat bike crankset with a 190/197 rear hub spacing use the 0 offset ring. If your fat bike has a 170/177 rear hub spacing, use the Standard 6mm offset
• Praxis Works Road/CX cranks use the 6mm offset. Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.

• If you have a BB30 crankset (30mm diameter aluminum spindle) the measurement pictured below will help you determine whether it is a long or short spindle.

• You will need chainring to chainstay clearance for a chainring two teeth bigger than the elliptical chainring (max diameter is that of a chainring two teeth bigger).
• If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).



Recommendations

• Recommend the use of a clutch style rear derailleur for the best chain security.
• A T25 Torx wrench is required to remove the bolts that secure the chainring or spider to the crankarm.
• An L-wrench works best since the crank spindle may contact a socket adapter and prevent it from engaging properly.
• Use the same 3 bolts to attach the Wolf Tooth ring or if you need, we carry replacement bolts

Related Products

• We recommend using a T25 L-Wrench or similar for removal and installation of the bolts.
• Replacement Bolts

Tech Specs
