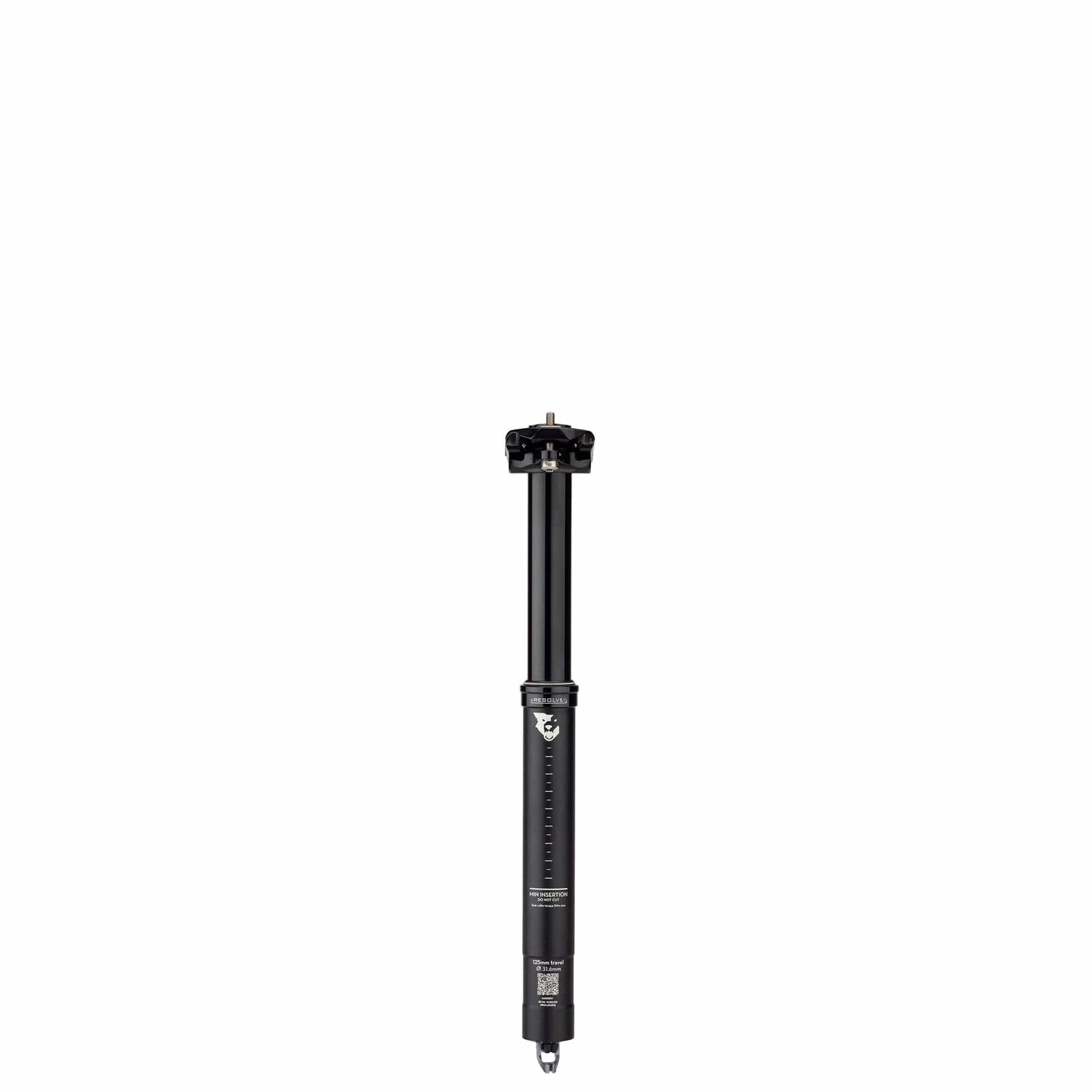

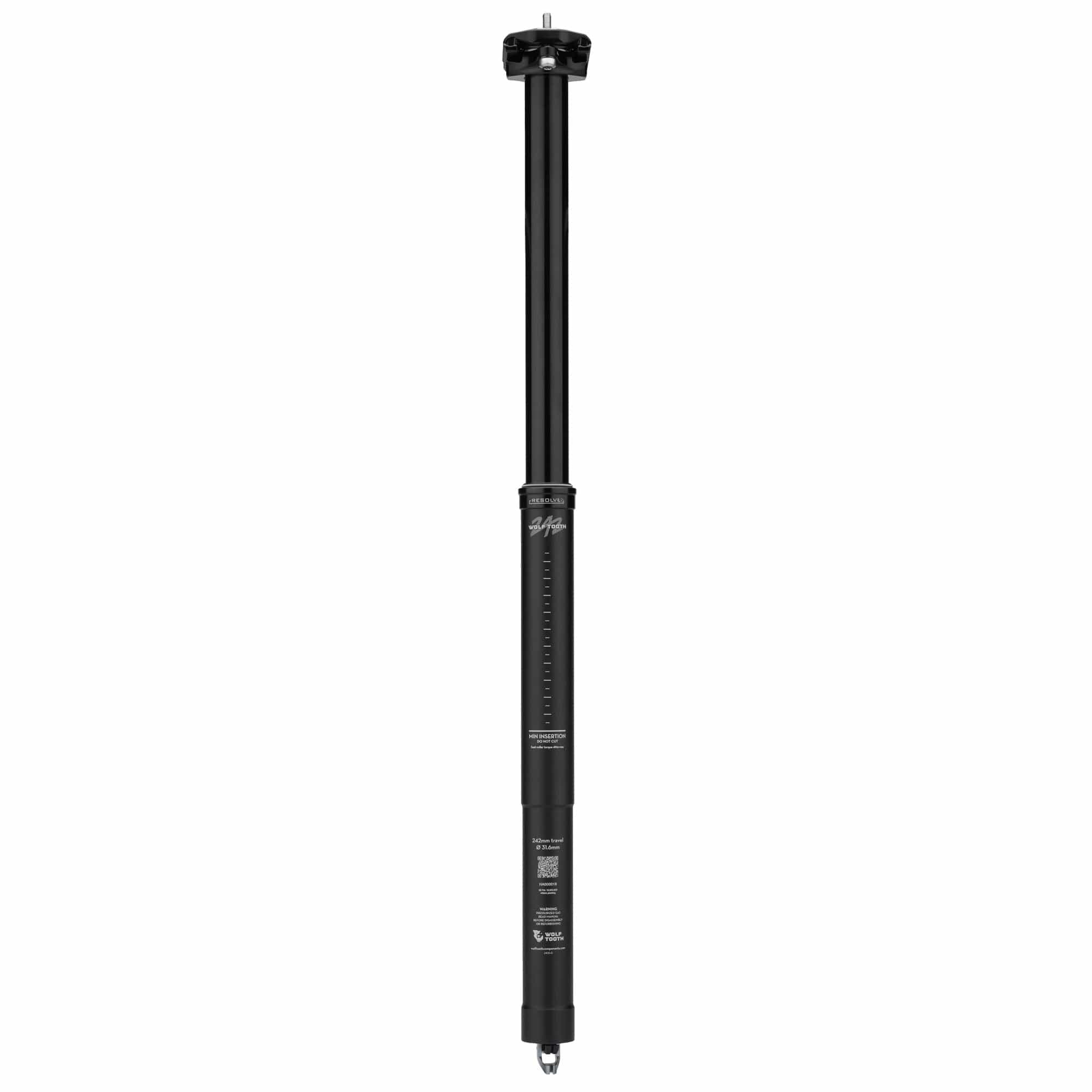

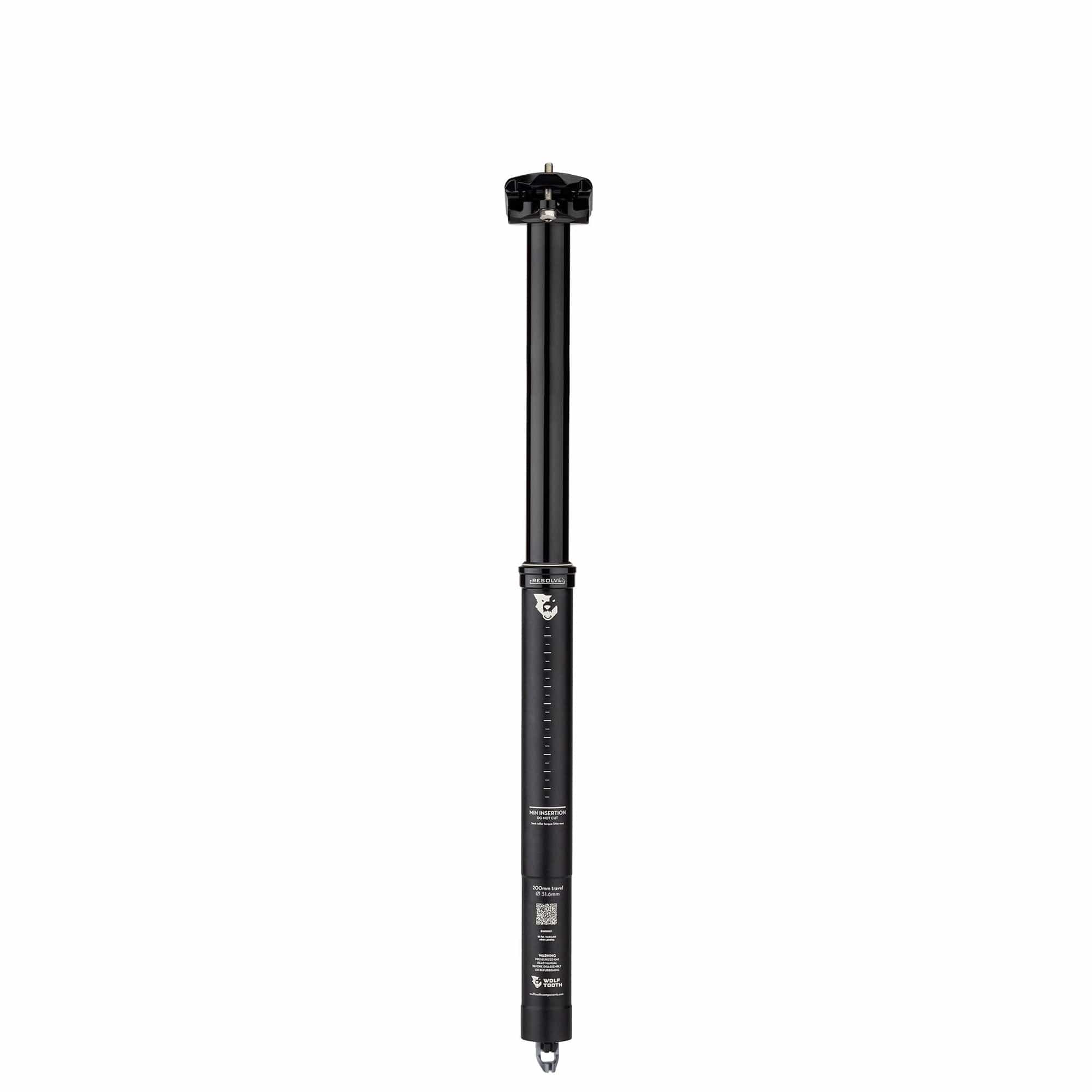

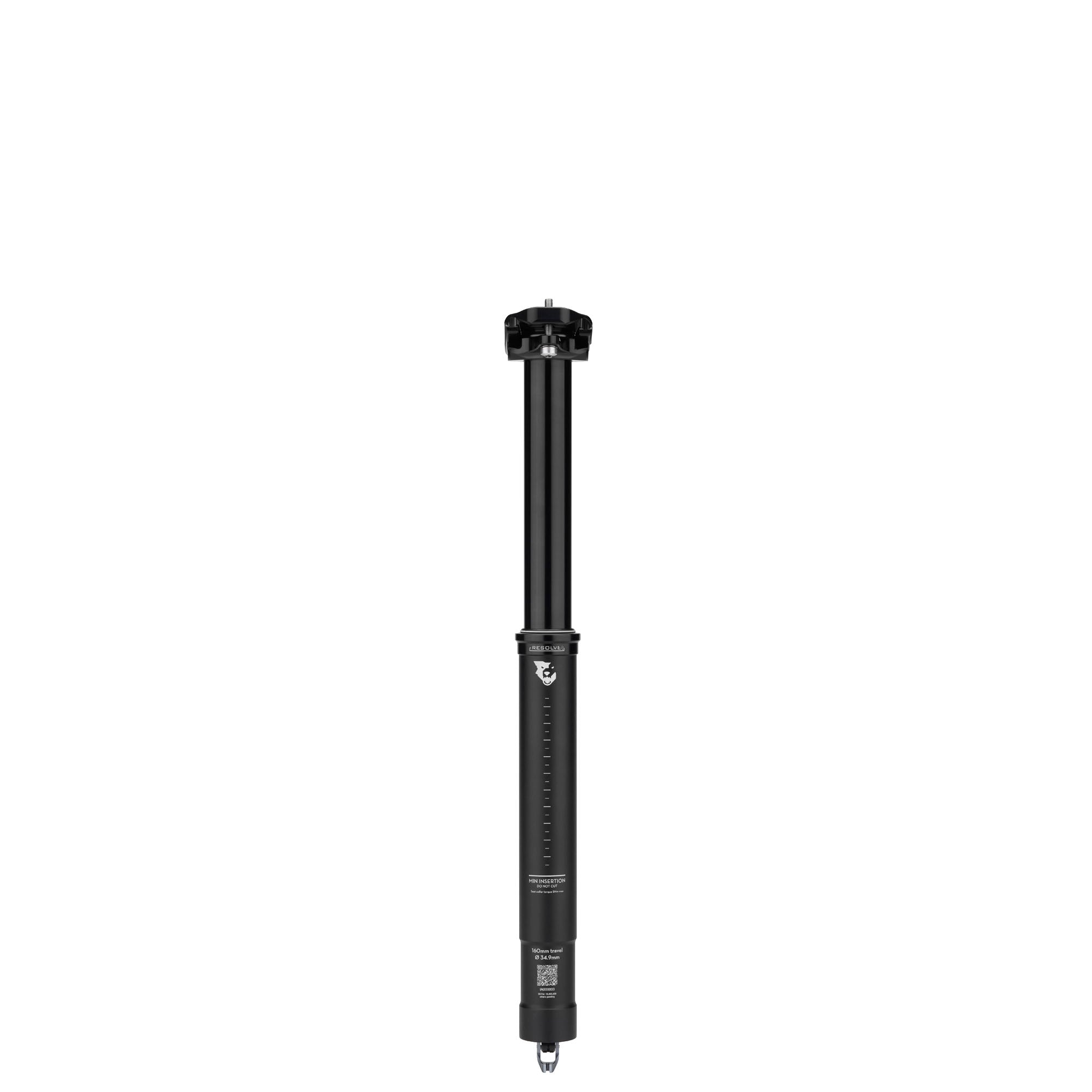

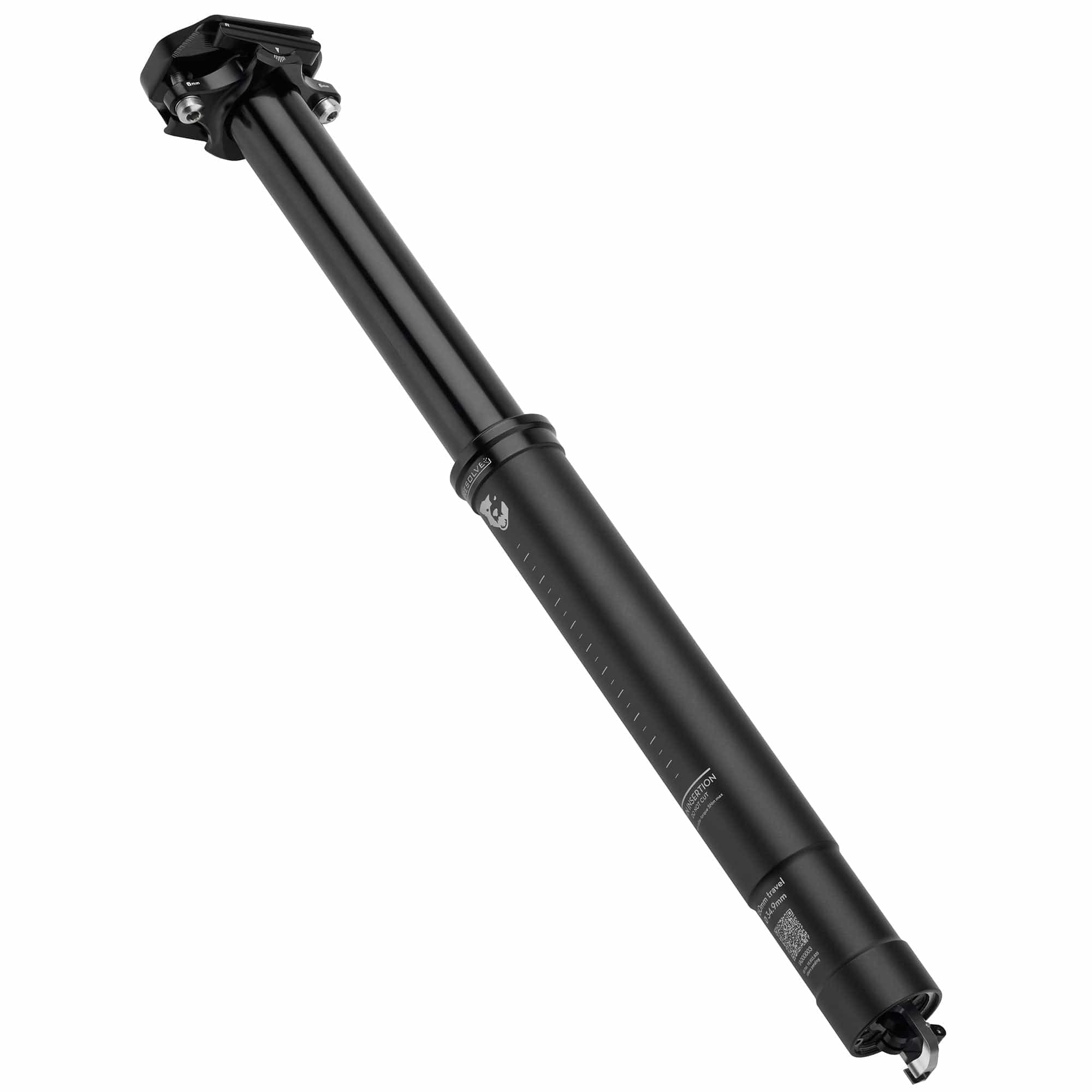

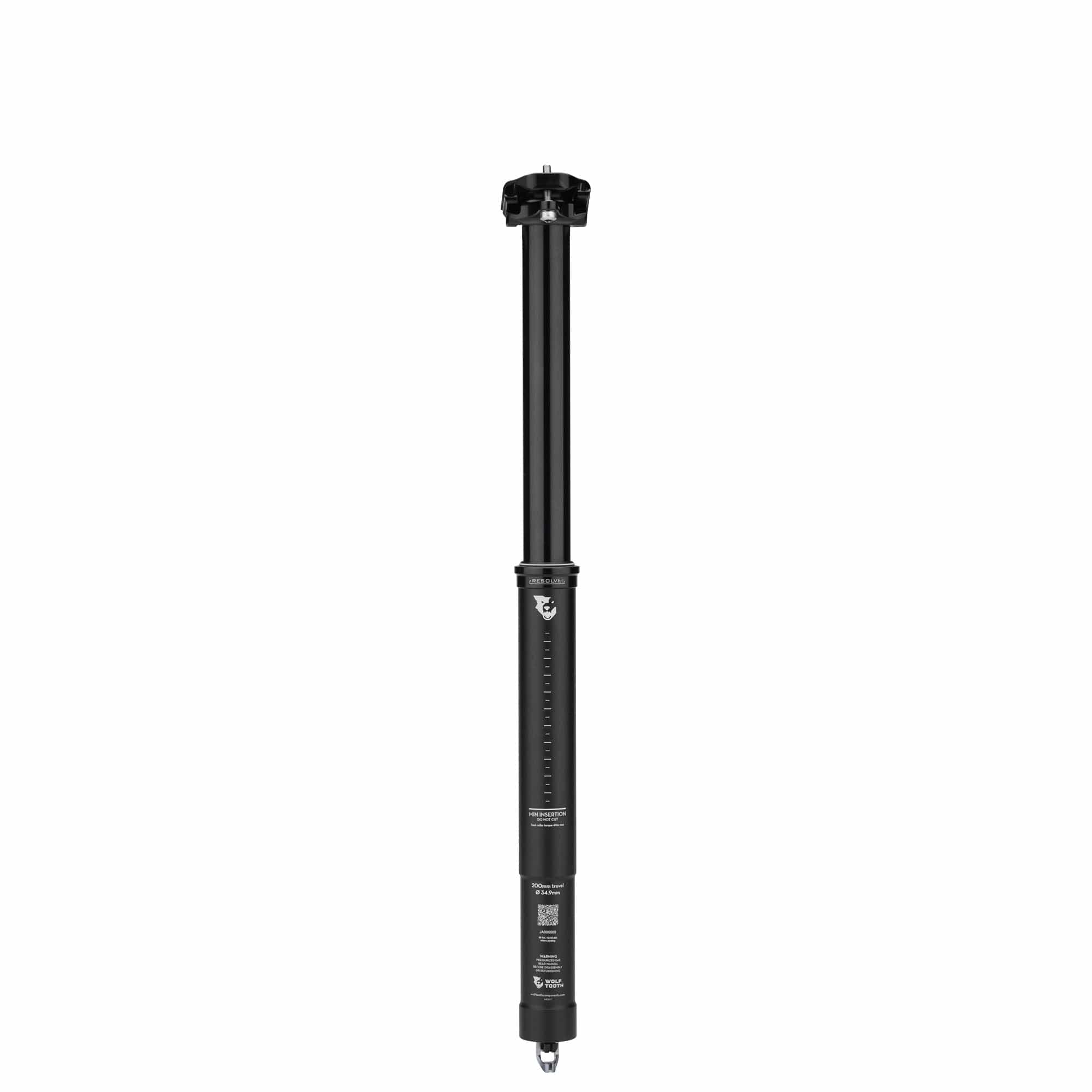

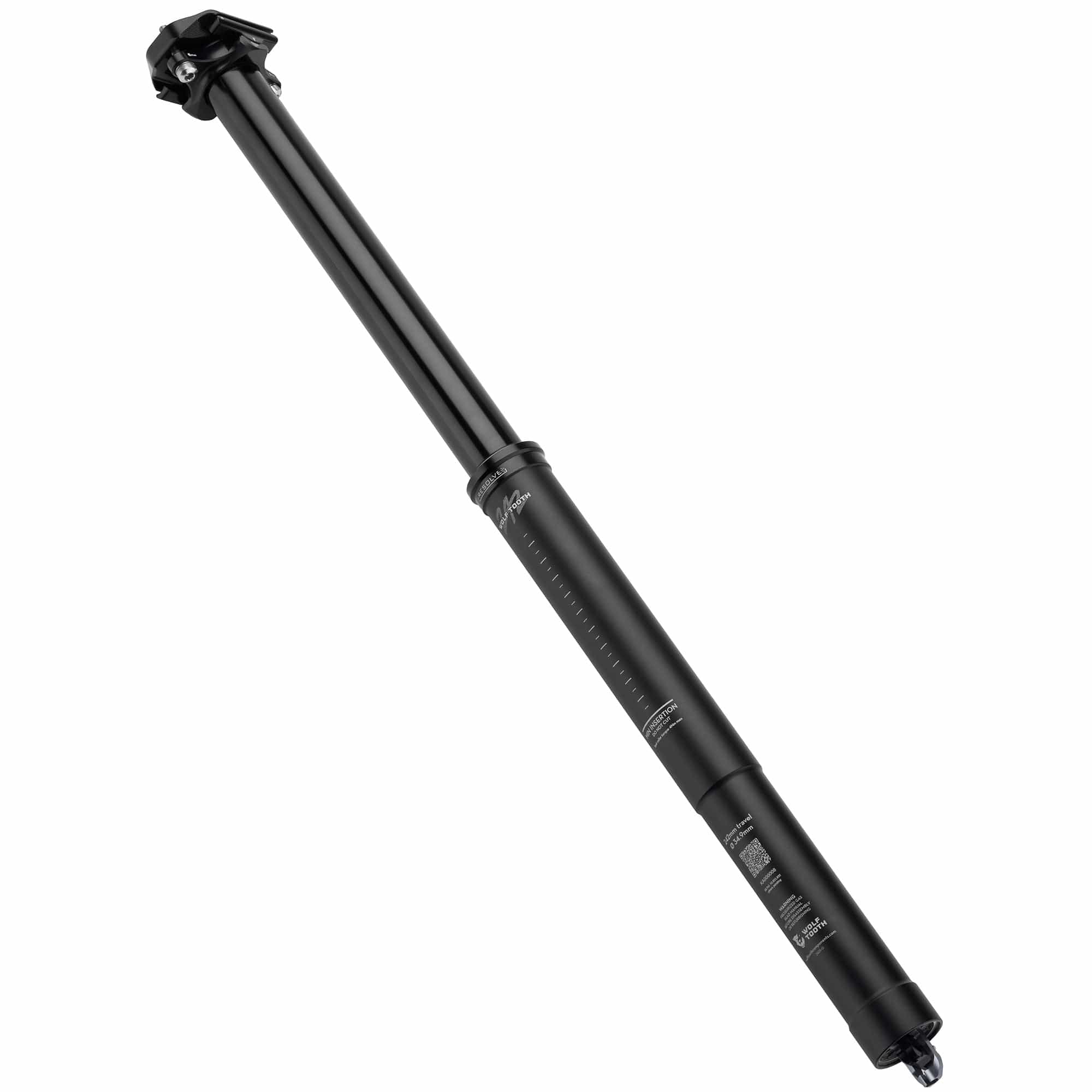

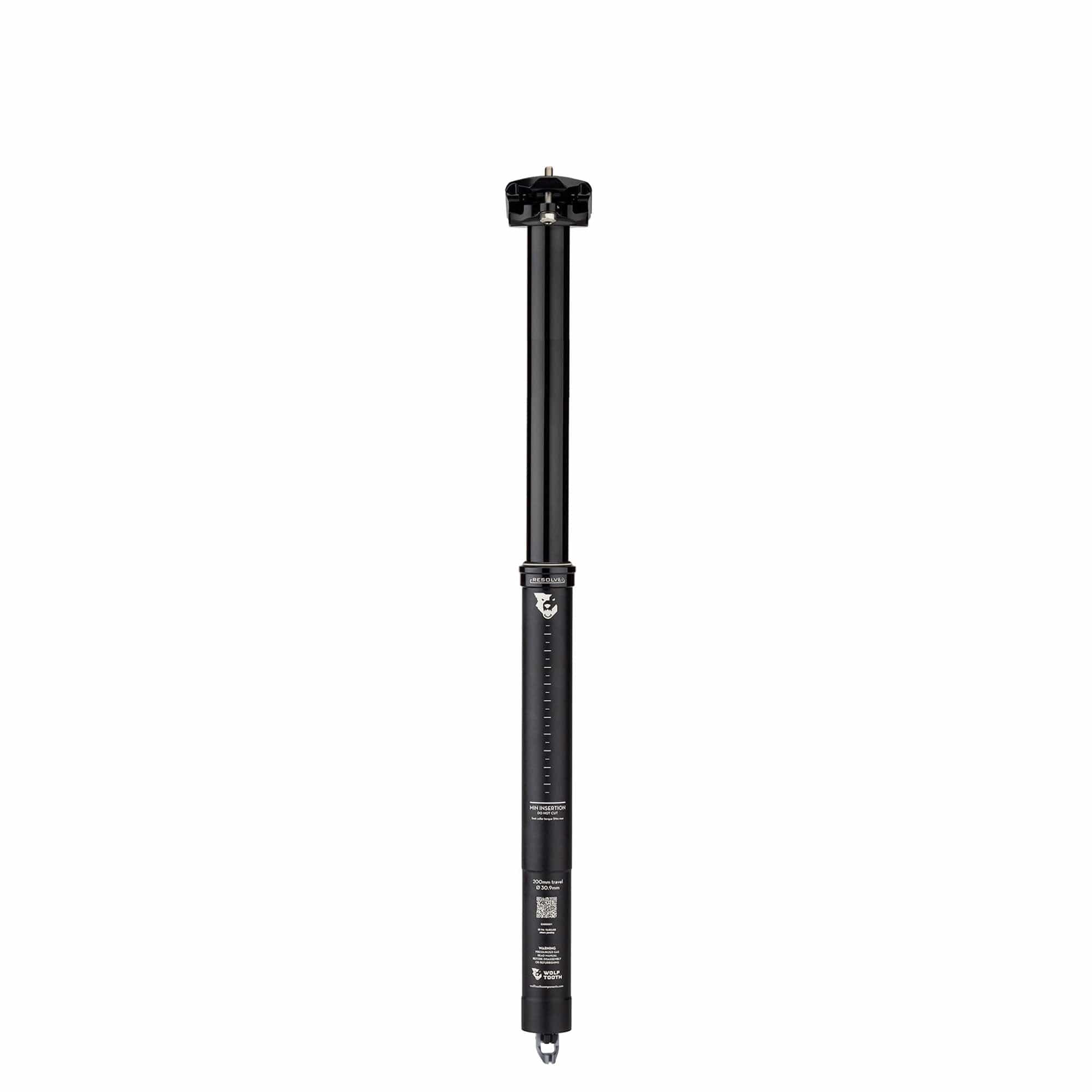

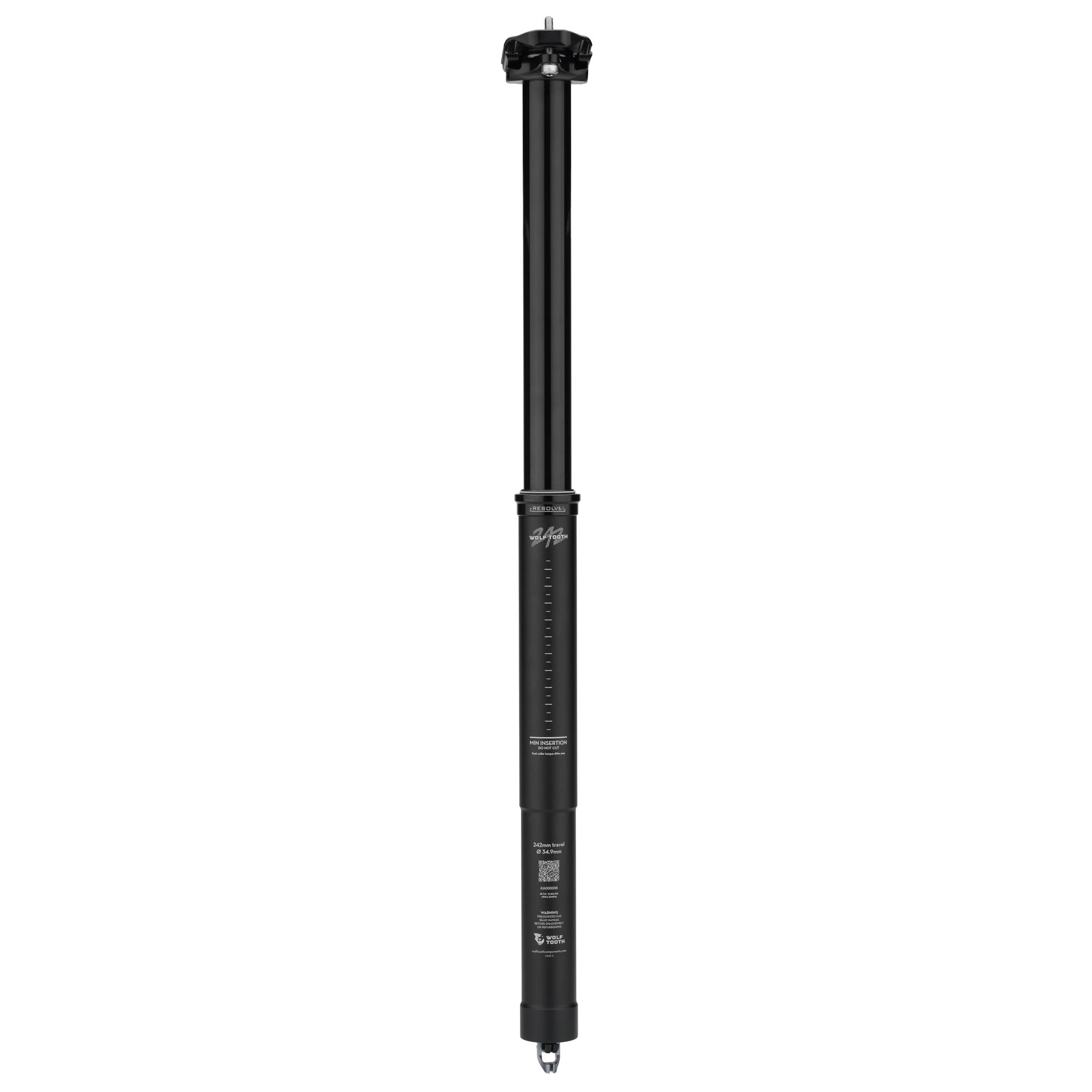

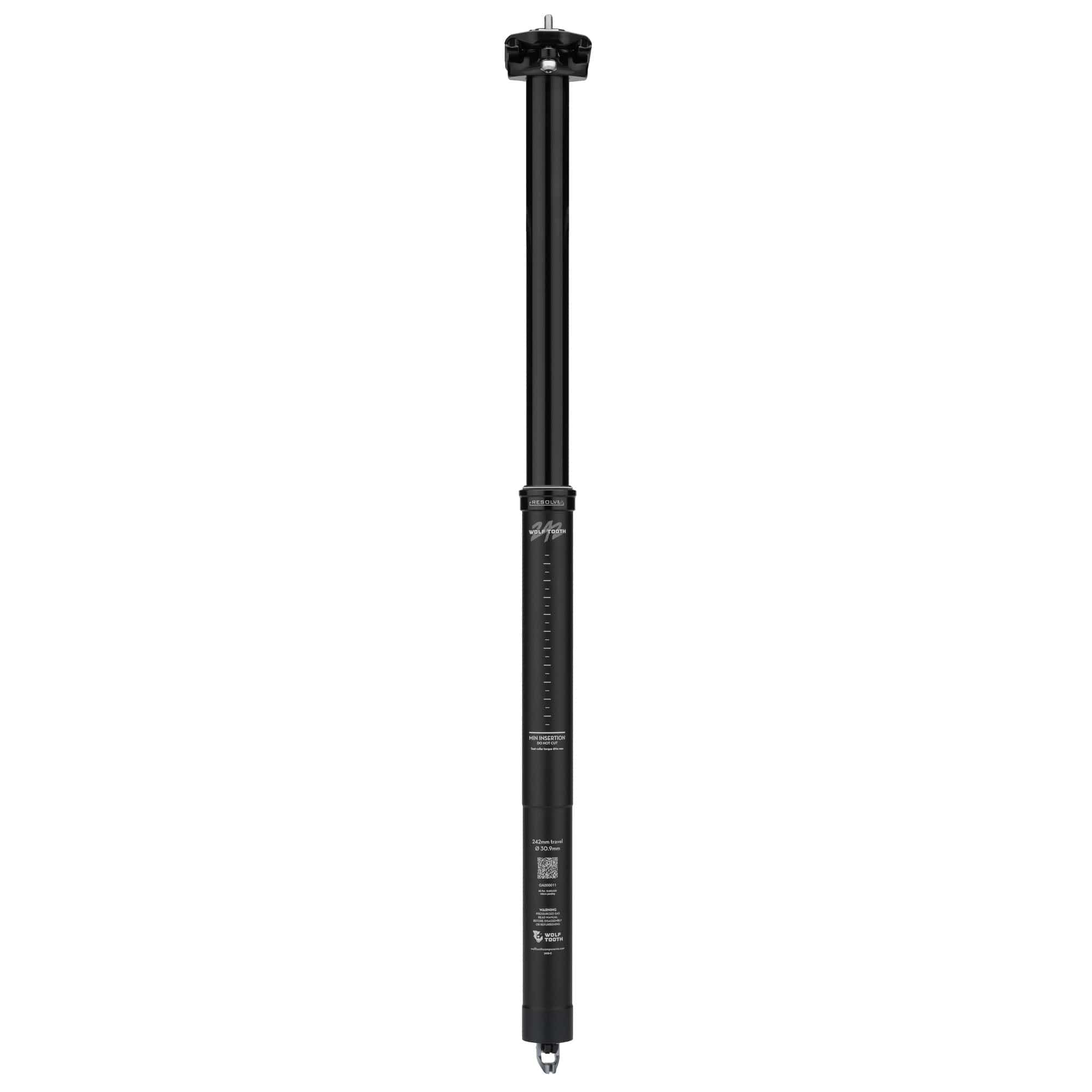

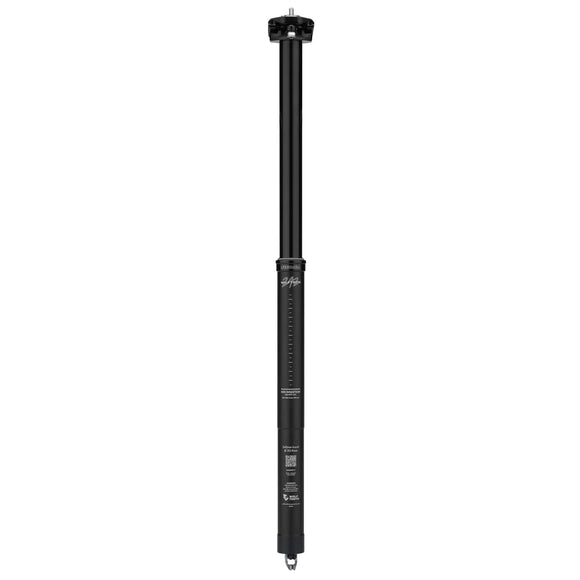

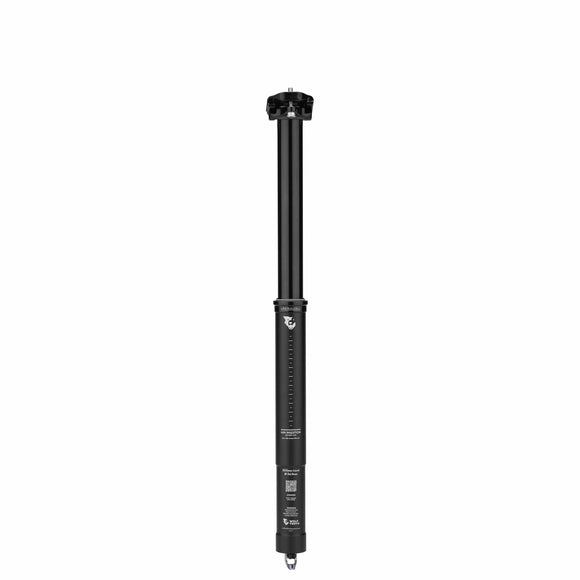

Resolve Dropper Post rev2

Compatibility

• Compatible with bike frames that use 30.9mm, 31.6mm, and 34.9mm diameter seatposts with internal cable routing for dropper posts.

• The minimum insertion depth is clearly marked on the Resolve Dropper Post lower tube and varies between 90 and 182mm. Always follow the minimum insertion depth recommended by your bike frame manufacturer if it is greater than the number marked on your dropper post. Minimum insertion depth varies by travel length and is specified on the Specs and Dimensions page .
• The longest travel dropper post that will fit you and your bike can be determined using our dropper post length calculator tool .
• Spacers can be installed to reduce the travel of the dropper post. Custom built dropper posts can be purchased with spacers installed at the factory.
• If your dropper lever routes the cable head at the remote lever on handlebars you will need a knarp cable barrel found in our replacement parts.
• Compatible with any ebike that uses a conventional dropper post mounting and actuating system.

Recommendations

We recommend using the ReMote Pro Dropper Lever or ReMote 360

Note that the self-bleeding function of the Resolve cartridge requires the dropper post to fully bottom out. Anything that prevents fully bottoming out will reduce the self-bleeding capability. Because of this, we do not recommend using the Wolf Tooth Valais or similar products that limit the downward (retracting) travel of the post. Limiting the extending travel is not an issue – our travel adjust spacers do exactly this.

NOTE:  XZN-16 Socket tool required to service Resolve Dropper Post, sold separately

Related Products

• ReMote Dropper Levers
• Seatpost Clamps
• Resolve Dropper Post rev2 Replacement Parts
• Resolve Dropper Post Travel Adjustment Spacers
• XZN-16 Socket Tool

Tech Specs

Full Specs and Dimensions

Resolve Dropper Post Length Calculator

User Manual and Installation Guide

Service and Rebuild Instructions

Factory Service Request

Resolve Replacement Parts

Product Registration

Included in box: Dropper seatpost, cable and housing kit, cable barrel
Not Included: XZN-16 Tool for disassembly

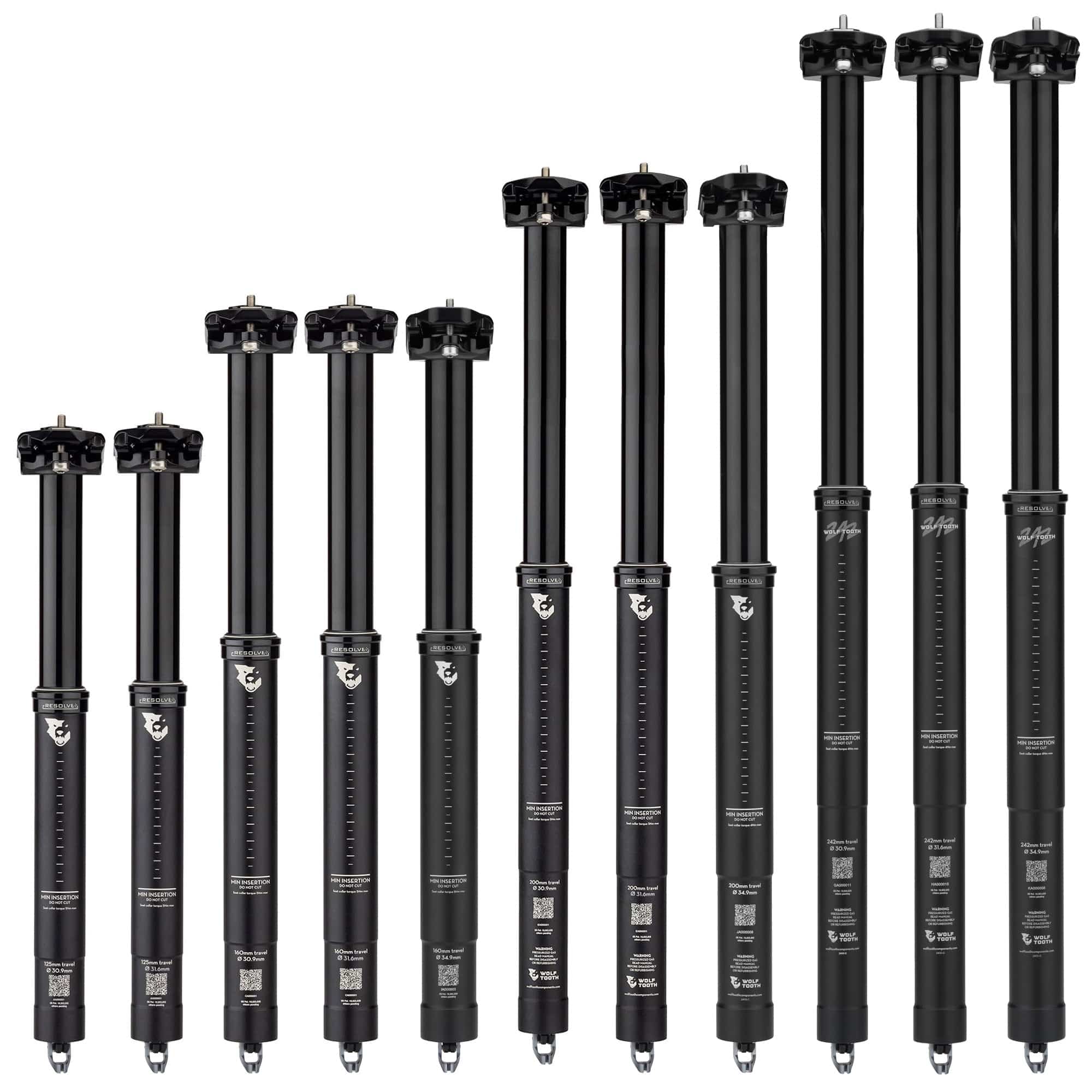

Weight (post only):
125 x 30.9 • 441g | 125 x 31.6 • 457g
160 x 30.9 • 491g | 160 x 31.6 • 511g | 160 x 34.9 • 584g
200 x 30.9 • 545g | 200 x 31.6 • 564g | 200 x 34.9 • 648g
242 x 30.9 • 601g | 242 x 31.6 • 621g | 242 x 34.9 • 711g
Stack Height (Extended Length - Travel): 32mm
Saddle Rail Clamp Bolt Torque: 6 Nm
Seatpost Clamp Max Torque: 4 Nm
Rider Weight Limit: 120 kg / 264 lbs

US patent 10,933,935
US patent 11,235,827
US patent 11,383,780
Other patents pending
